Tantalum IDE
Desktop hardware development platform
A local-first Electron IDE for Arduino sketches, board management, firmware builds, built-in Git source control, over-the-air deployment, source snapshot recovery, workspace cloud sync, and an integrated agentic coding assistant.
Overview
Tantalum IDE is the desktop foundation of a distributed hardware deployment ecosystem. It keeps day-to-day editing, Git source control, and compilation local, connecting to Appwrite, Gitea, and MQTT only when a project requires secure authentication, backup, OTA delivery, live telemetry, or AI model access.
Electron main process, React renderer, Monaco editor, Arduino CLI orchestration, serial tooling, local board profiles, built-in Git source control, OTA release creation, and AI agent runtime. The core engine that runs on your local machine.
Cloud portal for authentication, board administration, firmware history, agent settings, entitlements, support, and administrative operations.
Companion provisioning app for sending WiFi credentials to devices through BLE or SoftAP using board proof-of-possession, without exposing WiFi secrets to the cloud.
Core Features
Monaco-based sketch editing with Arduino CLI compile/upload, board packages, library installation, streamed build output, and compilation cancellation support.
Combines Arduino CLI board metadata, USB serial metadata, stable hardware fingerprints, ESP chip probing, and optional AI fallback for ambiguous boards.

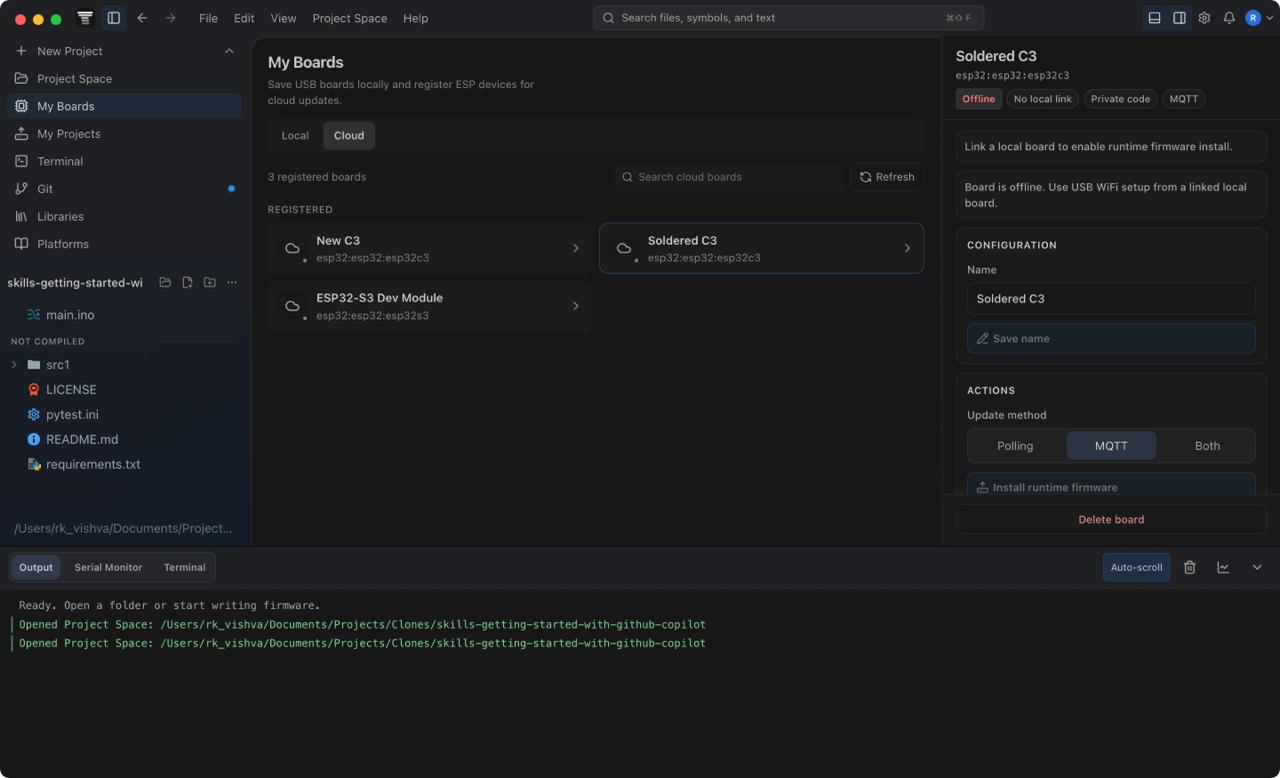

Saves FQBN, port, manufacturer, VID/PID, serial identity, cloud link, OTA mode, and source-code visibility so physical boards are instantly recognized upon reconnection.
Injects runtime macros and TantalumCloudRuntime.h into temporary builds for
heartbeat, OTA polling, MQTT commands, TLS, provisioning, and telemetry.

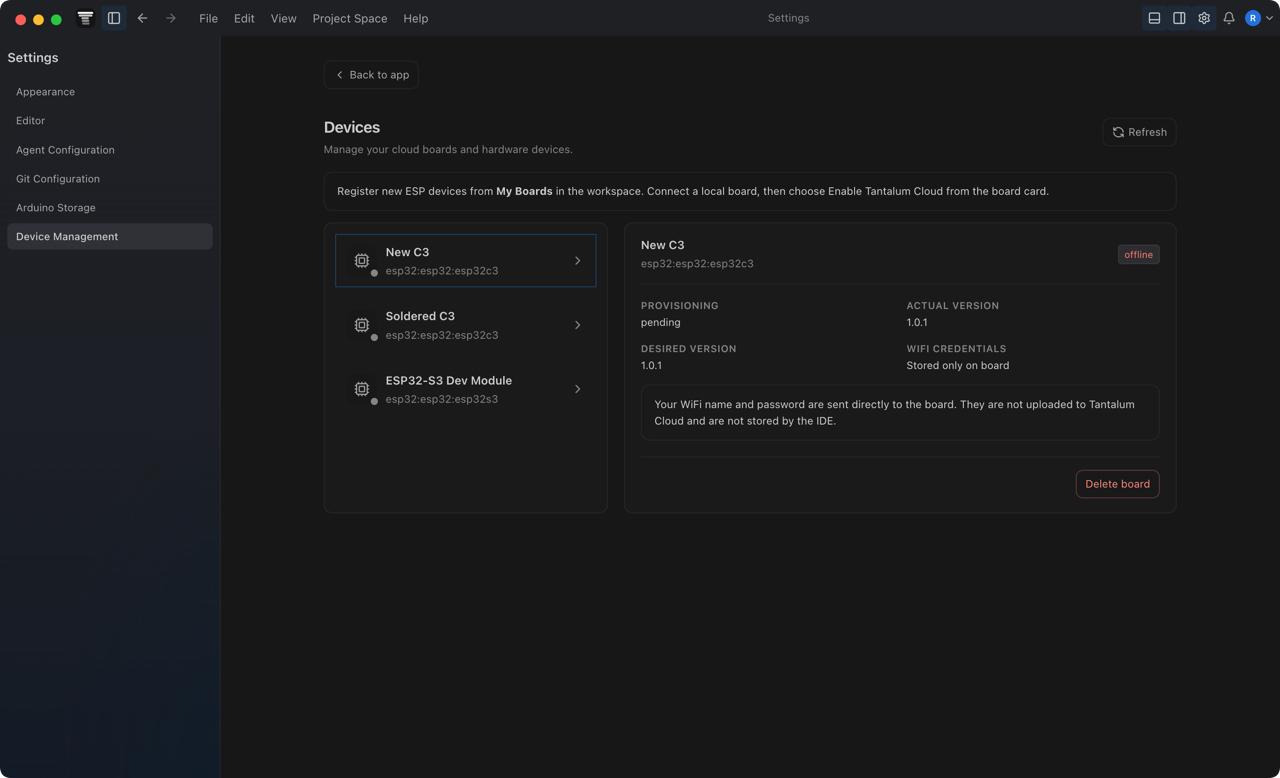

Builds locally, uploads firmware to Appwrite Storage, records metadata and checksums, then queues deployment through polling, MQTT, or both.
Restores exact source from Tantalum source snapshots by scanning firmware for an embedded marker and verifying cloud snapshot checksums.
Uses a shadow Git repository and Gitea remote so workspace backup does not mutate the user's own active Git repository.
Reviews changes, shows diffs, stages files, commits, fetches, pulls, pushes, manages branches, initializes repositories, and publishes to GitHub or GitLab.

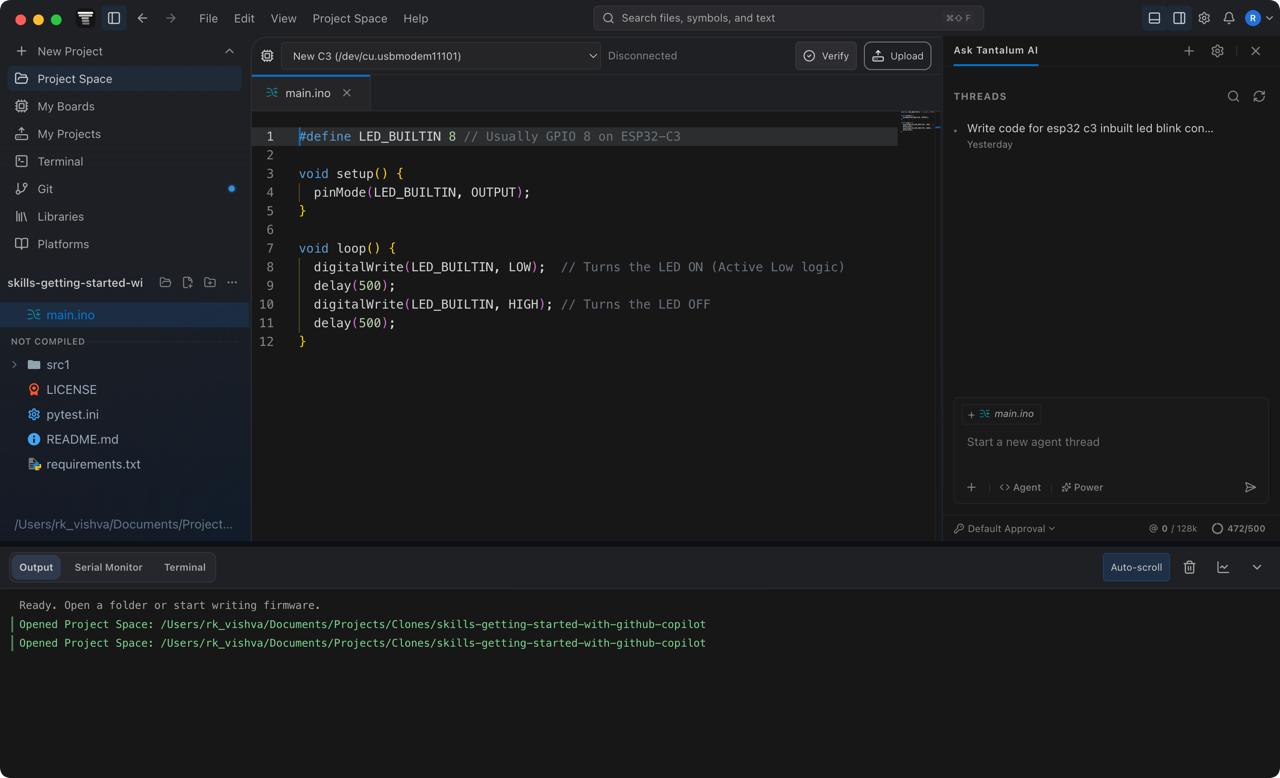

Routes prompts through the Tantalum agent runtime, OpenCode SDK, Appwrite gateway, safe workspace context, restore points, and Arduino/Git tool execution.
Reads serial output, supports numeric plot parsing, and checks for serial-port blockers before uploads, provisioning, or board-code readback.
Version Control
Tantalum's source-control panel works directly on the active Project Space repository.
This is separate from Project Cloud Sync: the Git panel uses the user's real
.git folder, while cloud sync uses a shadow repository for managed backup.
main.js runs git status --porcelain=v2 --branch and separates staged,
unstaged, untracked, and conflicted files. Diff views pair HEAD, staged objects,
and workspace file content so users can inspect changes before committing.
The UI supports stage, unstage, discard, commit, commit-and-push, fetch, fast-forward
pull, push, branch checkout, and branch creation through the guarded
window.tantalum.git preload API.
Non-Git Project Spaces can be initialized from the IDE. Publishing creates a GitHub or
GitLab repository, creates an initial commit if needed, sets origin, and pushes
the active branch without writing provider tokens into the remote URL.
Tantalum reads git log --all --topo-order --decorate=short --numstat and renders
refs, branch lanes, author metadata, avatars, ahead/behind state, and file-change
statistics inside the Git workspace.
Git author name and email are written through global Git config. GitHub/GitLab usernames, default provider choice, and personal access tokens live in the desktop secret store.
Git commands run with terminal prompts disabled, file paths are normalized inside the
active Project Space, destructive discards require confirmation, and unsafe repository
ownership can be repaired through an explicit safe.directory action.
How it works
Tantalum keeps privileged operations in Electron main, exposes a narrow IPC surface through preload, and lets the React renderer focus purely on user interface presentation.
Vite React application running Monaco editor & dashboards
Orchestrator, filesystem access, subprocesses & remote clients
Arduino CLI, Git CLI, Serial Ports, USB/BLE devices
Appwrite DB, Gitea Git, Mosquitto MQTT
Physical Boards (Tantalum Runtime)
main.js owns file system access, Arduino CLI processes, serial ports, Appwrite API
calls, Git CLI operations, cloud sync, toolchain locks, notifications, and agent orchestration. The
renderer communicates through explicit preload APIs such as toolchain.compile,
toolchain.detectLocalBoards, git.getStatus, and
toolchain.restoreBoardCodeSnapshot.
src/services/localBoardService.js merges arduino-cli board list JSON with
serialport results, normalizes physical ports, scores confidence, probes ESP chips
with esptool chip_id, then optionally calls the board-detection function for an
AI-assisted FQBN suggestion.
arduinoHandler.js creates a temporary sketch, wraps user setup() and loop(),
injects runtime macros, copies TantalumCloudRuntime.h, installs required libraries,
and verifies source markers are still present in compiled artifacts before upload.
Before upload, source files are zipped with tantalum-source-manifest.json. The build
embeds TANTALUM_SOURCE_SNAPSHOT_V1::<markerId>::<checksum>::END.
View Code reads firmware, finds that marker, downloads the matching snapshot, verifies
the checksum, validates identity, and restores files.
Marker documents start as pending. After a successful flash, the new marker becomes
current, the previous current is demoted to previous, and older documents in the
same retention group are pruned.
board-admin updates desired firmware state and can publish an HMAC-signed MQTT
command. device-gateway validates board tokens, returns signed OTA commands, records
heartbeats, and accepts OTA result telemetry.
cloudSyncService scans with .tantalumignore, copies allowed files into a shadow
repo, commits, rebases against Gitea, pushes, and applies remote tracked files back
into the Project Space. Existing Git projects are scanned read-only.
Built-in source control uses the active workspace repository rather than the cloud-sync shadow repo. IPC handlers wrap local Git commands for status, diffs, commits, remotes, branches, history, initialization, publishing, and safe-directory repair.
agent-gateway resolves managed or custom OpenAI-compatible credentials, validates
public HTTPS base URLs, applies output policy, retries around provider parameter
incompatibilities, debits credits, and writes usage ledger entries.
Workflow Map
Auto detect reads local board metadata, fills candidate FQBN and port details, and saves a profile keyed by trusted hardware identity.
board-admin creates a cloud board and returns one-time secrets. The desktop injects
those secrets into runtime firmware and flashes it over USB.
USB provisioning sends an HMAC-signed JSON command directly over serial. BLE and SoftAP provisioning use the runtime proof-of-possession value.
The IDE compiles locally, embeds a source marker, saves a source snapshot, uploads the firmware artifact, creates a firmware document, and queues deployment.
The IDE reads firmware, scans for the marker, lists the current and previous matching snapshots, then restores the chosen zip into the current or a new Project Space.
Source control reads the active repository, shows changed files and diffs, stages selected paths, commits locally, and can fetch, pull, push, or create branches.
Cloud sync snapshots selected workspace files into a shadow Git repo, pushes to Gitea, and writes sync events for audit and conflict handling.
Deployment
The default self-hosted ecosystem runs Appwrite for auth, database, storage, functions, and hosting; Mosquitto for persistent MQTT board commands; and Gitea for cloud workspace sync. Built-in Git source control can use any normal Git remote; Gitea is needed only for Tantalum-managed workspace cloud sync.
This repository includes a step-by-step Appwrite VM deployment runbook at Azure Self-Hosted Appwrite Runbook. Use the guide below as the project-wide architectural map, then follow the runbook for exact Azure command execution.
Host Appwrite on a VM with persistent data under /srv/tantalum. The provided Azure
scripts create the VM, data disk, Appwrite host scripts, backups, health checks, and
vertical resize path.
pwsh ./infra/azure/deploy-appwrite-vm.ps1 \
-SshPublicKeyPath "$HOME/.ssh/tantalum_azure_ed25519.pub" \
-DataDiskSizeGb 256
Push database tables, storage buckets, and serverless functions from appwrite.config.json. Keep the database ID
697b8f660033fffde4be unless you intentionally migrate all config.
appwrite push tables
appwrite push buckets
appwrite push functionsGenerate Key Encryption Keys (KEKs) for encrypted API keys and board command secrets. Configure collection, bucket, endpoint, MQTT, and credit variables per function.
node -e "console.log(require('node:crypto').randomBytes(32).toString('base64'))"
Run Mosquitto over TLS on port 8883. Appwrite publishes as a publisher user, boards
subscribe as a device user, and ACLs restrict access to tantalum/boards/+/+/cmd.
sudo apt install -y mosquitto mosquitto-clients openssl
sudo ufw allow 8883/tcpDeploy Gitea to host the remote workspace synchronization. Tantalum desktop processes authenticate with generated SSH keys and sync shadow Git repositories without touching the user's active history.
pwsh ./infra/azure/deploy-gitea-vm.ps1
pwsh ./infra/azure/configure-gitea.ps1Seed managed model keys, custom credential defaults, output styles, and utility AI models for board detection.
npm run selfhost:seed
npm run migrate:api-key-envelopesboards, firmwares, board_source_snapshots, sketches.agent_* settings, credentials, credits, usage, threads, and async results.utility_ai_model_pool, board_detection_cache, board_detection_usage.cloud_projects, cloud_project_devices, cloud_project_sync_events.desktop_auth_grants, user_entitlements, support and admin audit tables..bin, .hex, and .uf2 firmware binaries.npm run smoke:desktop-authnpm run smoke:device-gateway-ota-urlnpm run smoke:device-gateway-telemetrynpm run smoke:firmware-checksumnpm run smoke:board-codenpm run smoke:cloud-syncnpm run smoke:opencodeSecurity Model
Cloud boards store token hashes, token previews, MQTT topic suffixes, and encrypted command secret envelopes. The raw API token and command secret are returned only when creating or rotating a board.
WiFi SSID and password are sent directly to the board over USB, BLE, or SoftAP. They are never uploaded to Appwrite database tables and are not stored locally by the desktop process.
Managed and custom provider keys are stored as strong KEK-encrypted envelopes. The desktop does not require access to raw developer keys when routing through the Appwrite agent gateway.
Firmware source snapshots are private by default. Public code visibility grants read access to authenticated ecosystem users while keeping update/delete permissions scoped exclusively to the owner.
GitHub and GitLab publishing tokens are kept in the desktop secret store. Publishing pushes with a temporary authorization header and does not save provider tokens into repository remote URLs.
Agent context excludes secrets, keys, credentials, .env files, .git data, and agent
artifacts. Restore points can reverse agent file edits inside the active Project Space.
MQTT commands include action, deployment ID, nonce, timestamp, and HMAC signature. Boards reject stale, replayed, or incorrectly signed incoming commands.
Local Development
resources/main.js: Electron main, IPC handlers, remote calls, notificationspreload.js: Secure preload bridge interface definitionrenderer-react/: Vite-based React renderer interfacearduinoHandler.js: Arduino CLI runtime builder pipelinesrc/services/: Board, snapshot restore, cloud sync servicesrenderer-react/src/components/GitWorkspace.tsx: Git source-control UIsrc/agent/: Agent routing tools & OpenCode executionfunctions/: Self-hosted Appwrite serverless functionsresources/firmware/: Tantalum runtime IoT firmware source
